Possible areas of application
- Mobile and stationary use
- Smaller quantities of water
- Shallow suction of residual water down to a low water level of 1-2 mm
- in combination with the HYDRA series fire department vacuum cleaners
Technical data
FLAT-ROSS

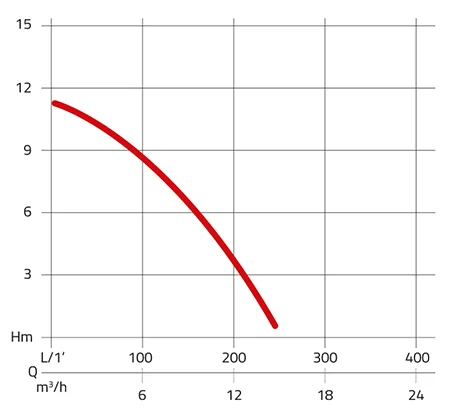

Pumping capacity
240 l/min // 14,400 l/h
Pump output
400 watts
Tension
230 V 50 Hz alternating current
Grain size
9 mm
Weight
13 kg
Material
Cast iron, aluminum, stainless steel, plastic
Dimensions
23 x 32 cm (∅ x height)
You can count on it!
- Connection: C-Storz coupling
- Sturdy and compact design
- Effective flat extraction down to a low
- Water level of 1-2 mm
- Residual water extraction
- 230 V 50 Hz alternating current
- Cable length of 10 m
- Insulation class F; protection class IP 68
- Dirty water ring for extracting contaminated water

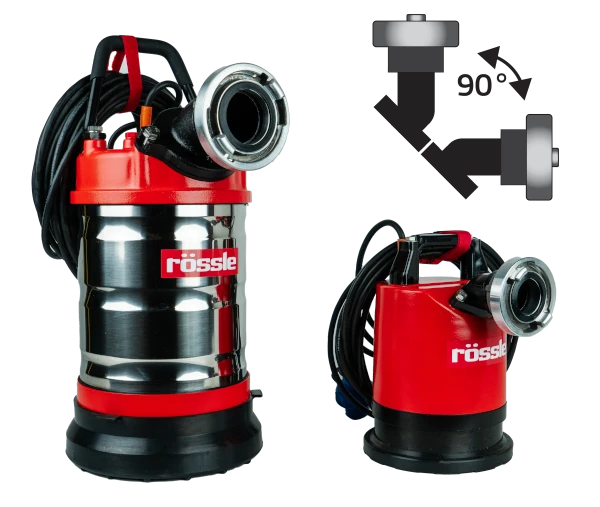

Rotatable Storz connection
Rotating the connections makes the FLAT-ROSS and B-ROSS pumps even more versatile. The hose can now be connected at an angle of 90 degrees to the pump. This can be a great advantage, especially for applications in particularly confined spaces. The FLAT-ROSS pump is also 1.5 cm lower, making it even more compact.

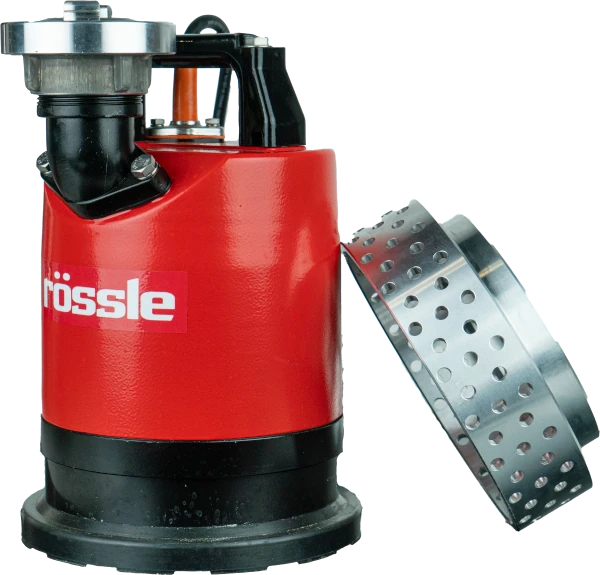

FLAT-ROSS waste water ring
The waste water ring makes the FLATROSS pump even more flexible. The pump can be used both as a flat suction pump and as a dirty water pump. The removable ring is made of anodized aluminium. It is simply attached to the underside of the pump with a bayonet lock. This prevents the pump from clogging when dirt or leaves are sucked in. (Dirty water ring can be retrofitted to any FLAT-ROSS pump already purchased)
