Possible areas of application
- Large volumes of water
- Contaminated water with solids up to ø 9 mm
- Extinguishing water supply
- Bridging larger distances
- Flat suction of residual water by means of an attachment ring
- in combination with the HYDRA series fire department vacuum cleaners
Technical data
B-ROSS

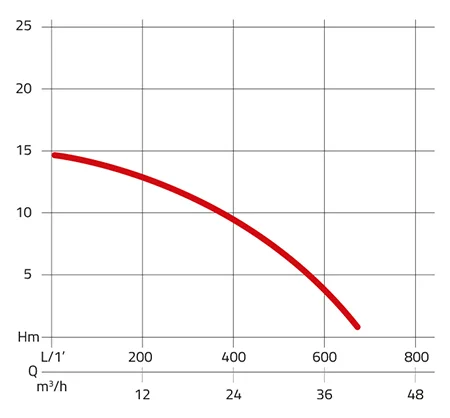

Pumping capacity
670 l/min // 40,200 l/h
Pump output
1,500 watts
Tension
230 V 50 Hz alternating current
Grain size
9 mm
Weight
35 kg
Material
Cast iron, stainless steel, chrome
Dimensions
30 x 58 cm (Ø x height)
You can count on it!
- Connection: B-Storz coupling
- Stable and robust construction
- Excellent for large volumes of water and extinguishing water supply
- Flat suction with removable flat suction ring
- 230 V 50 Hz alternating current
- Cable length of 20 m
- Insulation class F; protection class IP 68
Rotatable Storz connection
Rotating the connections makes the FLAT-ROSS and B-ROSS pumps even more versatile. The hose can now be connected at an angle of 90 degrees to the pump. This can be a great advantage, especially when used in particularly confined spaces. The FLAT-ROSS pump is also 1.5 cm lower, making it even more compact.

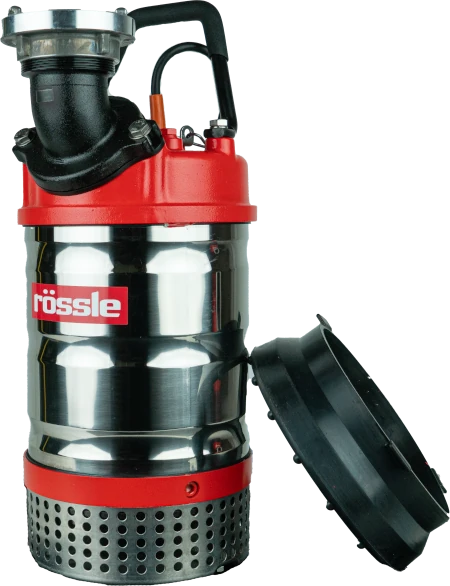

B-ROSS flat suction unit
With the flat suction ring of the B-ROSS pump, pumping down to a few millimeters is possible. The ring is made of rubber and can be easily attached to or removed from the suction basket of the pump. The ring is part of the standard package and is included with every B-ROSS pump.
