Pre-separator

ULTRA pre-separator - your universal application companion

When materials and liquids need to be cleaned and filtered before being discharged into sewer systems or bodies of water, the ULTRA pre-separator is indispensable equipment for firefighters.

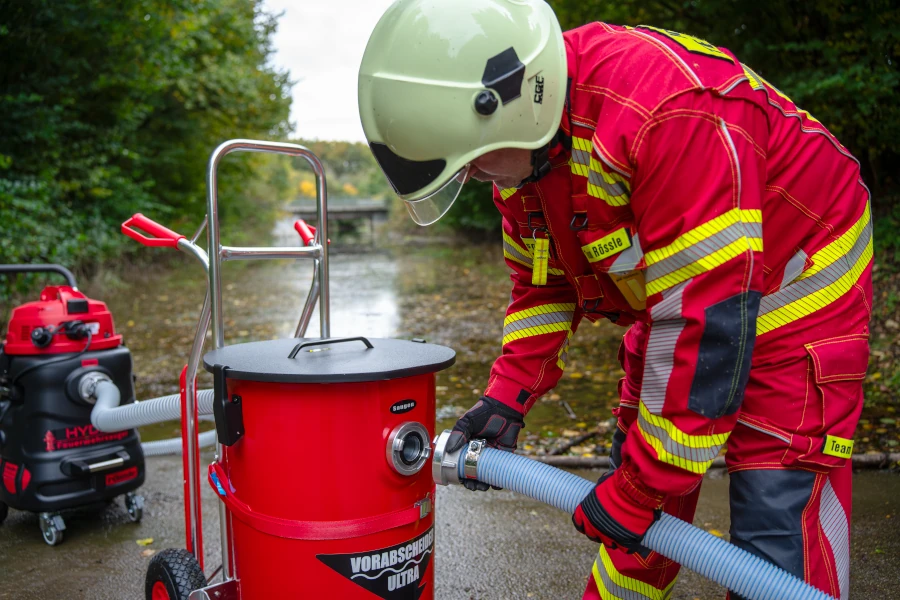

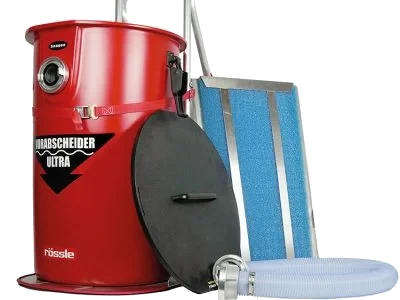

Mounted in front of the suction side of the HYDRA series fire department vacuum cleaners, the ULTRA pre-separator from Rössle AG separates everything that needs to be filtered during flood operations, flooding, burst water pipes or other operations. Large particles are separated by gravity – suspended particles sucked in sink into the tank and remain at the bottom. Coarse particles are retained by filtration with the perforated aluminum filter screen and the sponge filter before they reach the fire department vacuum cleaner. This effectively prevents blockages in the suction unit of the vacuum cleaner.

The ULTRA pre-separator is also ideally suited for use in the event of oil spills. For example, oil binding agents or other granulates are sucked in and filtered out in the pre-separator before they reach the fire department vacuum cleaner. The contaminated material in the container can then be disposed of at the appropriate collection points after use.

The ULTRA pre-separator can be optionally equipped with a pneumatic chassis, which not only significantly improves mobility, but also facilitates the easy emptying/disposal of the liquids and materials collected after use.

Technical data

ULTRA pre-separator

Tank capacity

90 liters

Material tank

GRP

Material sponge filter

PPI 10T/PUR ether

Material and grain size of filter screen

Aluminum, 22 mm hole diameter

Weight

20.5 kg

Connecting hose

1 meter length, 2x Storz-C connection

Dimensions

52 x 74 cm (diameter x height)

You can count on this with the ULTRA pre-separator!

  • Large, 90 l tank
  • Robust materials and compact design
  • Minimized device wear
  • 1 m long connecting hose

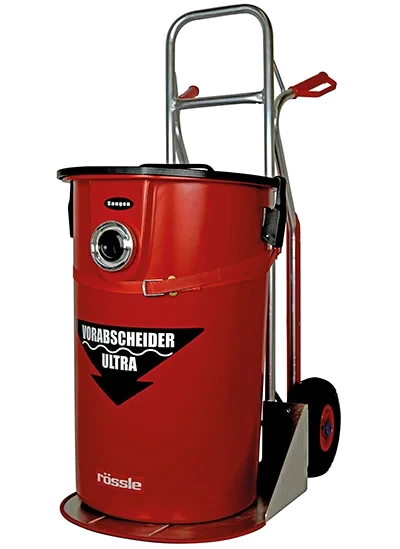

  • Outstanding mobility when using the optional pneumatic chassis

Technical data

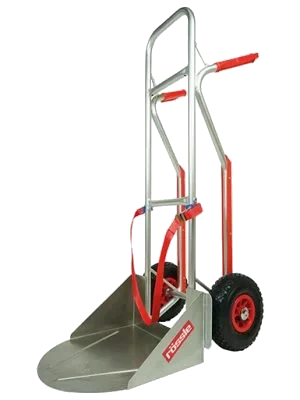

Optional chassis

Material

Aluminum

Tires

Profiled pneumatic tires

Weight

7.5 kg

Maximum payload

250 kg

Dimensions

48 x 70 x 118 cm (width x depth x height)

Product video
