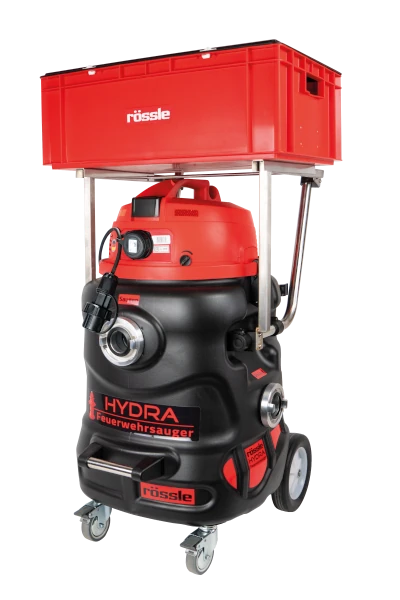

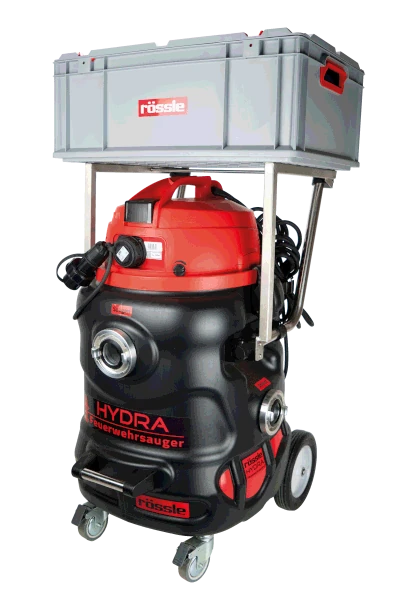

HYDRA-Z - Ready for special use

Rössle AG has developed an additional package for the HYDRA fire department vacuum cleaner especially for the needs of industrial and plant fire departments: HYDRA-Z.

The accessories stored in a removable box with lid directly on the HYDRA include nozzles, hose and stainless steel suction pipes in oil-resistant quality. The Storz connections on the tank of the firefighting vacuum cleaner can also be closed with the blind coupling and the ball valve so that small quantities of suctioned liquid can be safely transported in the approx. 70 liter tank of the device for disposal.

Especially in industrial production plants, leaking coolants or hydraulic oils are often a reality. With the HYDRA-Z, you are fully equipped for these applications.

Technical data

HYDRA-Z

Suction capacity

20,000 l/h

OSM turbine output

1,200 watts

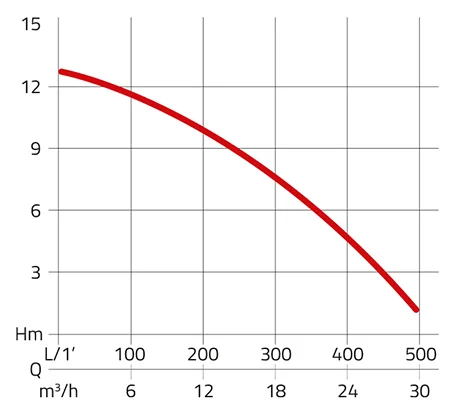

Dirt water pump output

1500 watts

Total weight
(HYDRA, accessory box and holder)

46 kg

Suction hose and drain hose

each 12 meters long, ø 50 mm

Dimensions
(incl. accessory box and holder)

60 x 63 x 108 cm (width x depth x height)

You can count on this with HYDRA-Z!

Ideal equipment for operations involving spilled oils, coolants or hydraulic fluids
Mechanical suction force regulation
C-Storz couplings on the suction and discharge side
12 meter long suction and drain hoses
Extension hoses for suction and drain side for a total range of 24 meters
Robust materials and compact design
Large, 70 liter tank
No service-intensive electronics
Continuous operation with 5 kVA DIN generators
Power cable length of 10 meters including 16 A Schuko plug Protection class IP68 with bayonet retaining ring and protective cap
Residual current circuit breaker
Electrical testing DIN VDE 0701-0702
Operating noise of 64 dB (A)

Included in the set:

HYDRA fire department vacuum cleaner including standard accessories
Accessory box with lid

Additional package compact

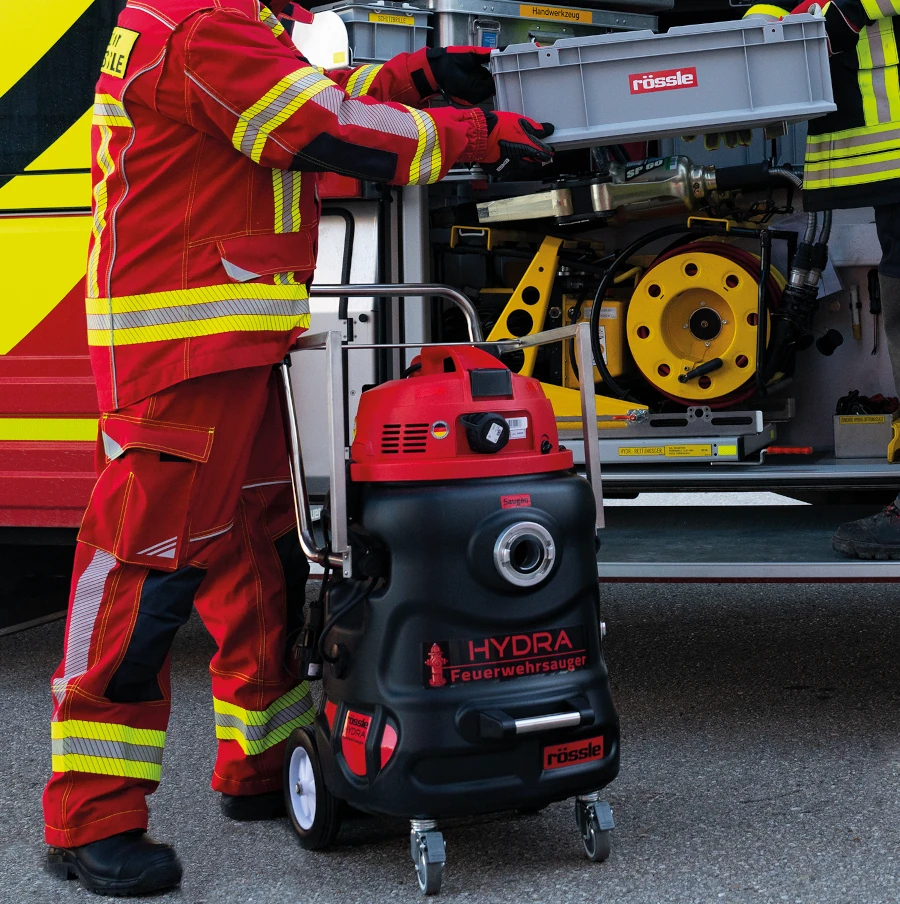

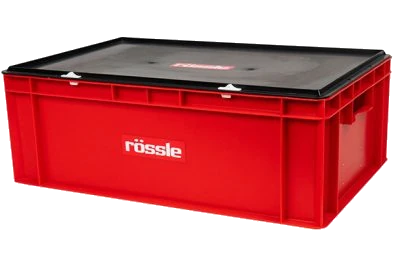

The additional package, consisting of storage box and equipment, is also available separately without the HDYRA vacuum cleaner. Thanks to the handy, standardized dimensions of the storage box, it can be easily stored in emergency vehicles. Roll containers can also be equipped with the box. For operations involving oil spills, the additional package is the perfect complement to the HDYRA vacuum cleaner.

Included in the additional package:

Storage box with lid

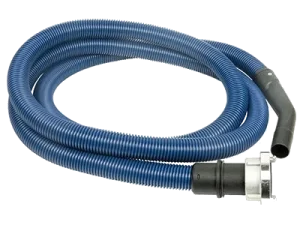

Oil-resistant suction hose with C-Storz coupling, 4 m

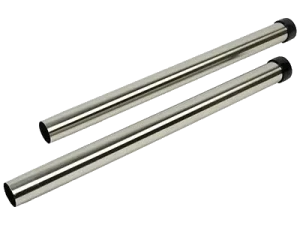

Stainless steel suction pipe, 2-piece, ø 40 mm

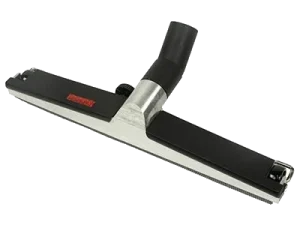

Mobile floor nozzle, ø 40 mm

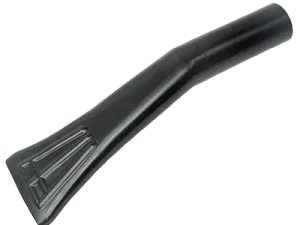

Plastic crevice nozzle

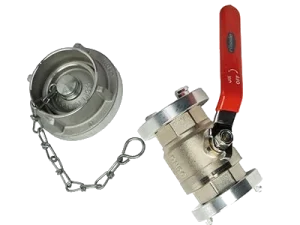

Blind coupling and ball valve for closing the couplings on the suction side and the discharge side of the fire department suction unit
