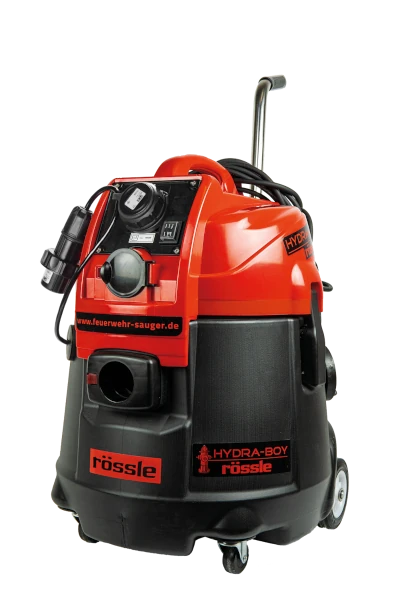

HYDRA-BOY - The little powerhouse

With its flexibility and excellent maneuverability, the HYDRA-BOY firefighting vacuum cleaner knows how to impress even in the tightest of spaces. In relation to its low weight and space-saving dimensions, the most compact vacuum cleaner in the HYDRA series has a powerful dirty water pump and a powerful suction turbine with a suction capacity of 8,000 l/h.

With a suction opening of 38 mm, the HYDRA-BOY can easily cope with sludge and small stones. Inside, the device has a tear-resistant, easy-to-empty mesh bag that collects coarse solids sucked in and thus protects the dirty water pump. Its long suction and discharge hoses provide a wide range of applications with plenty of room for maneuver. The extensive range of accessories with versatile application options makes the HYDRA-BOY a powerful helper in an emergency.

Technical data

HYDRA-BOY

Suction capacity

8,000 l/h

OSM turbine output

1,200 watts

Dirt water pump output

900 watts

Weight (without accessories)

18 kg

Suction hose and drain hose

10 meters length each, ø 38 mm

Dimensions (without handle bar)

46 x 49 x 64 cm (width x depth x height)

Dimensions (with handle bar)

46 x 66 x 85 cm (width x depth x height)

You can count on this with HYDRA-BOY!

  • Flexibility and excellent maneuverability in the tightest of spaces
  • Unscrewable handle bar reduces the loading height
  • Easy to transport
  • C-Storz coupling made of plastic on the top of the drain
  • 10 meter long suction and drain hoses
  • Extension hoses for suction and drain side for a total range of 20 meters
  • Robust materials and compact design
  • 45 liter tank
  • No service-intensive electronics
  • Continuous operation with 5 kVA DIN generators
  • Power cable length of 10 meters including Schuko plug Protection class IP68
  • Residual current circuit breaker
    Operating noise of 82 dB (A)

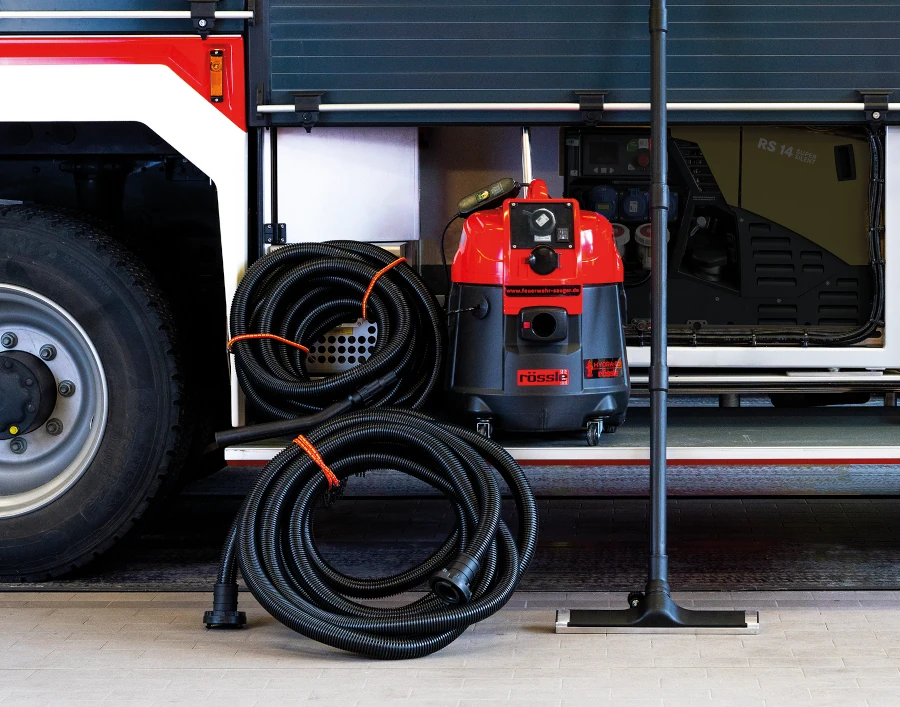

Included in the set:

  • HYDRA-BOY fire department vacuum cleaner
  • 10 m long suction hose
  • 10 m long drain hose
  • Four-part suction pipe, ø 38 mm
  • Aluminum floor nozzle
  • Plastic floor nozzle
  • Transparent flat nozzle
  • crevice nozzle
  • Suction brush

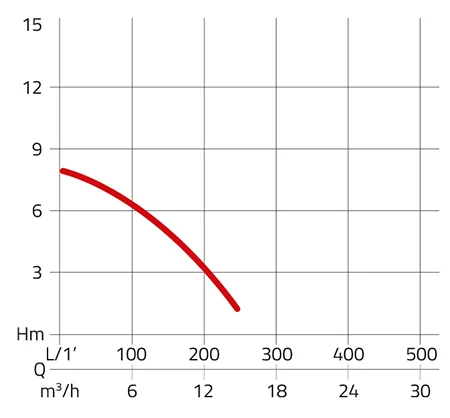

The HYDRA-BOY fire department vacuum cleaner is characterized by an enormous pumping capacity. The diagram shows the pumping capacity in m³ per hour in relation to the pumping height.
